- General Information
- Manufacturer
- AEG Power Solutions
- Manufacturer Website Address
- http://www.aegaustralia.com.au
- Brand Name
- AEG
- Product Line
- Protect B
- Product Type
- Line-interactive UPS

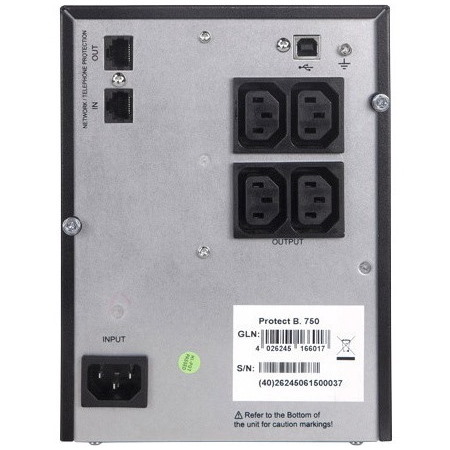

PROTECT B / NAS LINE-INTERACTIVE UPS WITH 500 - 1500 VA
The new Protect B series has been specially refined for applications in the SME and SoHo segment and is perfect for protecting NAS systems, ATMs, 3D printers, workstations, PCs, and other IT applications. In particular, the standard HID power device interface enables software-independent communication and allows the UPS to be integrated directly into a network-attached storage (NAS) management system. The Protect NAS model also has a much longer autonomy time in the lower partial load range when operated fanless. This makes the Protect NAS ideal for office and home environments.
- Technical Information
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 4 x IEC 60320 C13
- Transfer Time
- 10 ms
- Application/Usage
- Workstation
- Desktop Computer
- 3D Printer
- Network Storage Device
- ATM
- Power Description
- Load Capacity (VA)
- 750 VA
- Load Capacity (Watt)
- 450 W
- Input Voltage
- 230 V AC
- Input Voltage Range
- 176 V AC - 288 V AC
- Output Voltage
- 220 V AC
- 230 V AC
- 240 V AC
- Waveform Type
- Sinusoidal
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Battery Information
- Backup/Run Time (Full Load)
- 2.02 Minute
- Typical Battery Recharge Time
- 5 Hour
- Hot Swappable
- Yes
- Physical Characteristics
- Height
- 209 mm
- Width
- 150 mm
- Depth
- 240 mm
- Form Factor
- Tower
- Weight (Approximate)
- 6.80 kg
