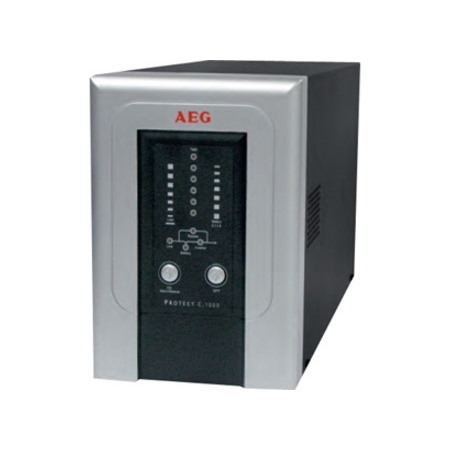

AEG Protect C. C. 10000 Double Conversion Online UPS - 10 kVA/7 kW

  • Part: 1682499
  • Model: 6000005878
$7,363.14

Availability

Out of Stock

  • General Information
    • Manufacturer
    • AEG Power Solutions
    • Manufacturer Website Address
    • http://www.aegaustralia.com.au
    • Brand Name
    • AEG
    • Product Line
    • Protect C.
    • Product Type
    • Double Conversion Online UPS

Due to online / double-conversion technology Protect C. is well suited for mission-critical applications such as sensitive networks, small computer centers, Intranet and Internet servers, telecom applications as well as for industrial applications. The Protect C. employs VFI topology to protect loads against all public grid disturbances. On the input side sine wave shape current consumption is achieved for all load conditions. High integrated circuits reduce the number of electric connections and components as well as robust IGBT module, the result: less and more robust components increasing reliability. An automatic bypass provides security during overload.

  • Technical Information
    • Receptacle Type
    • Terminal Block
    • Dataline Protection
    • RJ-11
    • RJ-45
    • Bypass Switch
    • Automatic
    • Transfer Time
    • 0 ns
  • Power Description
    • Load Capacity (VA)
    • 10 kVA
    • Load Capacity (Watt)
    • 7 kW
    • Input Voltage
    • 220 V AC
    • Input Current
    • 50 A
    • Output Voltage
    • 240 V AC
    • 220 V AC
    • Output Current
    • 43.40 A
  • Management
    • Network Management
    • SNMP Manageable
  • Battery Information
    • Battery Characteristics
    • Maintenance-free, Sealed
    • Backup/Run Time (Full Load)
    • 5 Minute
    • Backup/Run Time (Half Load)
    • 15 Minute
    • Typical Battery Recharge Time
    • 7 Hour
  • Physical Characteristics
    • Height
    • 717 mm
    • Width
    • 260 mm
    • Depth
    • 570 mm
    • Form Factor
    • Tower
    • Weight (Approximate)
    • 93 kg
  • Miscellaneous
    • Certifications & Standards
      • EN 50091-2
      • EN 61000-6-3
      • CE
