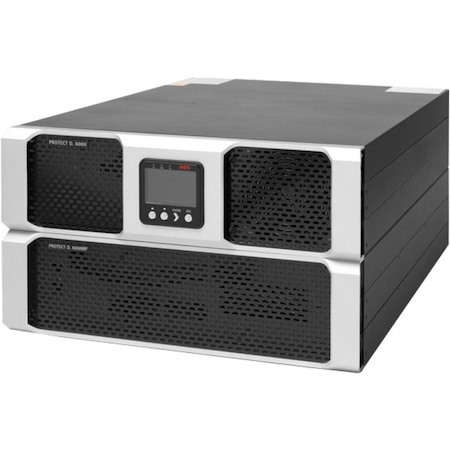

AEG Protect D. Double Conversion Online UPS - 6 kVA/5.40 kW

  • Part: 1682510
  • Model: 6000008439
$5,907.85

Availability

Out of Stock

  • General Information
    • Manufacturer
    • AEG Power Solutions
    • Manufacturer Website Address
    • http://www.aegaustralia.com.au
    • Brand Name
    • AEG
    • Product Line
    • Protect D.
    • Product Type
    • Double Conversion Online UPS

Top performance in rack format

Protect D. 6000 and D. 10000 compliment the range of the successful Protect D series. With Protect D. 10000, a power level of 10 kVA in rack design is available for the first time. Protect D. 6000 and Protect D. 10000 have the same advantages and characteristics as the smaller models, including the high power factor of 0.9lag.

Compact housing dimensions

Thanks to their compact design, the devices can also be used in IT cabinets with a depth of only 800 mm. Protect D. 6000 including battery, connection unit and manual bypass unit fits within 3 standard height units. The 10 kVA version, with a complete battery system, connection unit and integrated manual maintenance bypass fits within 5 standard height units. The sophisticated design with removable connection unit and battery systems with plug-in technology make the assembly in the rack and the electrical installation as easy as possible. The weight is unimportant as the batteries can be mounted at the end of the installation.

Flexible and maintenance friendly

The equipment offers separate feed for the rectifiers and bypass, Protect D. 6000 and 10000 can also be operated with only one feed. Both options are provided to deliver highest flexibility and security. To increase power or to be able to serve the demand for active redundancy, Protect D. 6000 and Protect D. 10000 are prepared for parallel operation.

In order to ease maintenance work, a manual bypass is already integrated into the removable connection unit.

  • Technical Information
    • Receptacle Type
    • Terminal Block
    • IEC 60320 C13
    • IEC 60320 C19
    • Receptacle Detail
    • 1 x Terminal Block
    • 2 x IEC 60320 C13
    • 1 x IEC 60320 C19
    • Phase
    • Single Phase
  • Power Description
    • Load Capacity (VA)
    • 6 kVA
    • Load Capacity (Watt)
    • 5.40 kW
    • Input Voltage
    • 230 V AC
    • Input Voltage Range
    • 120 V AC - 276 V AC
    • Output Voltage
    • 200 V AC
    • 208 V AC
    • 220 V AC
    • 230 V AC
    • 240 V AC
    • Waveform Type
    • Sinusoidal
  • Battery Information
    • Backup/Run Time (Full Load)
    • 3 Minute
    • Typical Battery Recharge Time
    • 3 Hour
    • Hot Swappable
    • Yes
  • Physical Characteristics
    • Height
    • 132 mm
    • Width
    • 48.6 mm
    • Depth
    • 715 mm
    • Rack Height
    • 3U
    • Form Factor
    • Rack-mountable
    • Weight (Approximate)
    • 46 kg
