Details:

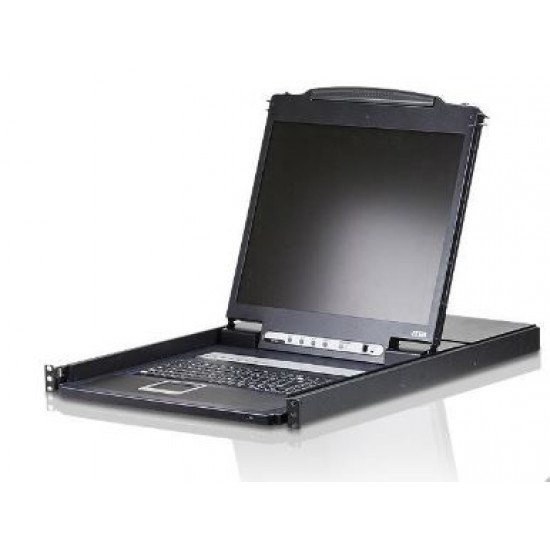

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.CL-1308N LCD KVM Switch features an integrated 19" LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console.

Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers.

The CL-1308N intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.

Aten48EOFY

Specifications:

Computer Connections

• Direct: 8
• Maximum: 128 (via Cascade)

Port Selection

• OSD, Hotkeys, Pushbuttons

Connectors

• KVM Ports: 8 x SPHD-17 Female (Yellow)
• FW Upgrade: 1 x RJ-11 Female (Black)
• Power: 1 x 3-prong AC Socket (IEC60320/C14)

Switches

• Reset: 1 x Semi-recessed Pushbutton
• Power: 1x Rocker
• FW Upgrade: 1 x Slide
• LCD Control: 4 x Pushbutton
• LCD On/Off: 1 x Pushbutton
• Port: 8 x Pushbutton

LEDs

• Online: 8 (Orange)
• Selected: 8 (Green)
• Power:
• KVM: 1 (Dark Green)
• LCD: 1 (Orange)
• Lock
• Num: 1 (Green)
• Caps: 1 (Green)
• Scroll: 1 (Green)

Emulation

• Keyboard / Mouse: PS/2, USB

Video

• 19-Inch LCD: 1280×1024 @ 75 Hz ; DDC2B

Scan Interval

• 1-255 seconds

I/P Rating

• 100-240 VAC; 50/60 Hz; 1A

Power Consumption

• 19-Inch LCD: 120V, 22 W / 230V, 22.9 W

Environment

• Operating Temp: 0-50°C
• Storage Temp: -20-60°C
• Humidity: 0 - 80% RH, Non-condensing

Physical Properties

• Housing: Metal + Plastic
• Weight: 12.42kg
• Dimensions: 68.90 x 48.30 x 4.40cm (L x W x H)
