Details:

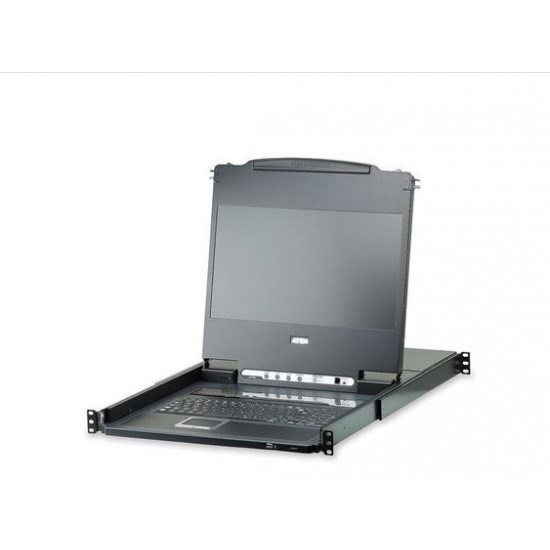

The CL6708MW brings additional versatility to ATEN's line of LCD KVM Switches with its native DVI compatibility. Building on ATEN's renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN's LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Specifications:
Computer Connections
- Direct: 8
- Maximum: 64
Connectors
- External Console Ports: 1 x DVI-I Female, 2 x USB Type A Female, 1 x Mini Stereo Jack Female
- External Mouse Port: 1 x USB Type-A Female
- KVM Ports: 8 x DVI-I Female, 8 x USB Type A Female, 8 x Mini Stereo Jack Female
- Firmware Upgrade: 1 x RJ-11 Female
- Power: 1 x IEC60320/C14
Switches
- Reset: 1 x Semi-recessed Pushbutton
- Power: 1x Rocker Switch
- FW Upgrade: 1 x Slide Switch
- LCD Adjustment: 4 x Push button
- LCD Power: 1 x Push button
- Port Selection: 8 x Push button
LEDs
- Online: 8 (Orange)
- Selected: 8 (Green)
- Power:
- 1x KVM Power (Dark Green)
- 1x LCD Power (Orange)
- Lock
- Num: 1 (Green)
- Caps: 1 (Green)
- Scroll: 1 (Green)
Panel Spec
- Screen Size: 17.3"
- Pixel Pitch: 0.1989 mm x 0.1989 mm
- Support Colour: 262144 colours
- Contrast Ratio: 650:01:00
- Luminance: 300 cd/m2
- Response time: 8 ms
- Viewing Angle: 140° (H), 120° (V)
Emulation
- Keyboard / Mouse: USB
Video
- 1920x1080 @ 60Hz ; DDC2B
I/P Rating
- 100-240 VAC; 50/60 Hz; 1A
Power Consumption
- 110V, 29.26W ; 220V, 28.82W
Environment
- Operating Temp: 0-40°C
- Storage Temp: -20-60°C
- Humidity: 0 - 80% RH, Non-condensing
Physical Properties
- Housing: Metal
- Weight: 12.70kg
- Dimensions: 48 x 68.92 x 4.40cm (L x W x H)
