Details:

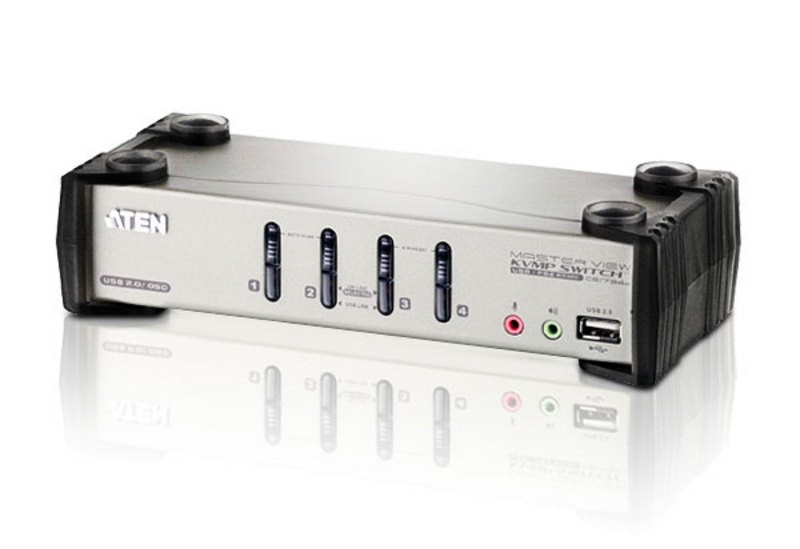

Aten CS-1734B – 4-Port USB 2.0 KVMP Switch with OSD
The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are three methods to obtain instant access to any computer in your installation: Manual, Hotkey, OSD, and mouse.
Specifications:
| Computer Connections | 4 | ||
| Port Selection | OSD; Hotkey; Pushbutton; Mouse | ||
| Connectors | Console Port | Keyboard | 1 x USB Type A Female (Black) |
| Video | 1 x HDB-15 Female (Blue) | ||
| Mouse | 1 x USB Type A Female (Black) | ||
| Speaker | 2 x Mini Stereo Jack Female (Green) | ||
| Mic. | 2 x Mini Stereo Jack Female (Pink) | ||
| KVM Port | Keyboard | 4 x SPHD-15 Female (Yellow) | |
| Video | |||
| Mouse | |||
| Speaker | 4 x Mini Stereo Jack Female (Green) | ||
| Mic. | 4 x Mini Stereo Jack Female (Pink) | ||
| Firmware upgrade | 1 x 4-conductor 3.5mm Jack (Black) | ||
| Power | 1 x DC Jack | ||
| USB Hub | 2 x USB Type A Female (White) | ||
| Switches | Selected | 4 x Pushbutton | |
| LEDs | On Line/ Selected | 4 (Orange) | |
| USB Link | 4 (Green) | ||
| Emulation | Keyboard / Mouse | PS/2; USB | |
| Video | 2048 x 1536 @ 60Hz; DDC2B | ||
| Scan Interval | 1-255 seconds (Default: 5 sec.) | ||
| Power Consumption | DC5.3V, 3.4W | ||
| Environment | Operating Temp. | 0-50 °C | |
| Storage Temp. | -20-60 °C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.78 kg | ||
| Dimensions ( L x W x H ) | 21.00 x 8.70 x 5.50 cm | ||
Package Contents
- 1 x 4-Port USB 2.0 KVMP™ Switch
- 4 x Custom USB KVM Cable Sets
- 1 x USB-to-PS/2 Converter
- 2 x OSD/Hotkey Stickers
- 1 x Firmware Upgrade Cable
- 1 x Power Adapter
- 1 x User Instructions
