Details:

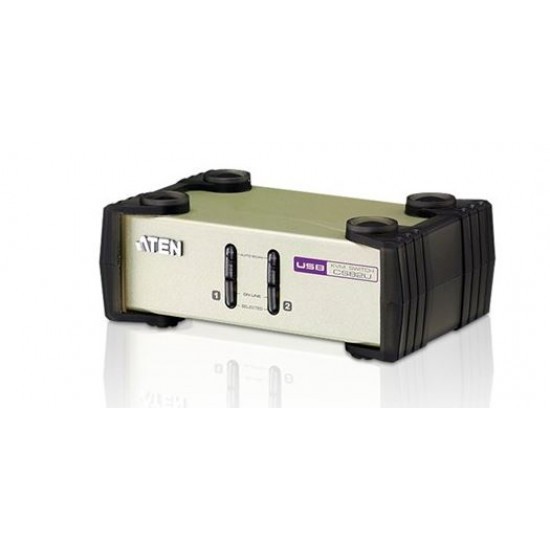

Aten CS-82U – 2-Port PS/2-USB KVM Switch

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync technology, which eliminates boot-up display problems and optimizes resolution.

Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.

Specifications:

• Computer Connections: 2
• Port Selection: Front Panel Pushbuttons; Hotkey, USB Mouse
• Connectors:
• Console Ports:
• Keyboard:
• 1 x USB Type A Female (Black),
• 1 x 6-pin Mini-DIN Female (Purple)
• Video: 1 x HDB-15 Female (Blue)
• Mouse:
• 1 x USB Type A Female (Black),
• 1 x 6-pin Mini-DIN Female (Green)
• KVM Ports: 2 x SPHD-18 Female (Yellow)
• Power: 1 x DC Jack
• Switches - Selected: 2 x Pushbutton
• LEDs:
• On Line: 2 (Orange)
• Selected: 2 (Green)
• Emulation - Keyboard/Mouse: PS/2, USB
• Video: 2048 x 1536 @ 60 Hz; DDC2B
• Scan Interval: 3, 5, 10, 20 secs. (5 secs. default)
• Power Consumption: DC 5V, 1.1W
• Environment:
• Operating Temp.: 0 ~ 50°C
• Storage Temp.: -20 ~ 60°C
• Humidity: 0 ~ 80% RH, Non-condensing
• Physical Properties:
• Housing: Metal
• Weight: 0.54 kg
• Dimensions (LxWxH): 14.00 x 8.70 x 5.50cm
• Package Contents:
• 1 x CS82U PS/2-USB KVM Switch
• 2 x Custom KVM Cable sets
• 1 x User Instructions
