Details:

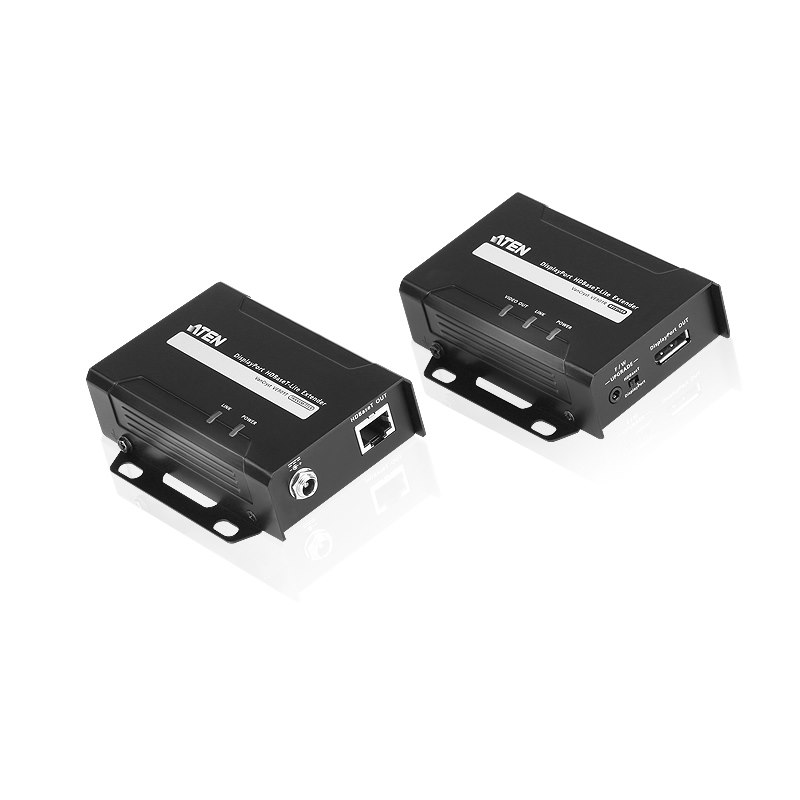

The VE-901 Display Port HDBaseT-Lite Extender is able to extend a Display Port display up to 70 m using a Cat 5e/6/6a cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE-901 Display Port HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE-901 can be installed in a multitude of locations while ensuring peace of mind with its reliability

Specifications:

Function: VE901R // VE901T

Connectors:

• · Display (Display Port IN) N/A // 1 x DisplayPort Female (Black)
• · Device 1 x DisplayPort Female (Black) // (Display Port OUT) N/A
• · Max. Distance N/A // 1.5 m
• · Between units 1 Cat 5e/6/6a
• Power Connectors 1 x DC Jack

Audio:

• ·Input N/A // 1 x DisplayPort Female (Black)
• ·Output 1 x DisplayPort Female (Black) // N/A

Power Consumption: DC 5V, 7.95W // DC 5V, 3.13W

Environmental:

• · Operating Temperature 0-40°C // 0-40°C
• · Storage Temperature -20 - 60°C // -20 - 60°C
• · Humidity 0 - 80% RH, Non-Condensing // 0 - 80% RH, Non-Condensing

Housing: Metal

Physical Properties:

• · Weight 0.27 kg (0.59 lb) // 0.24 kg (0.53 lb)
• · Dimensions (L x W x H) 10.06 x 8.70 x 3.00 cm // 10.06 x 8.70 x 3.00 cm

Package Contents:

1x VE901T DisplayPort HDBaseT-Lite Transmitter

1x VE901R DisplayPort HDBaseT-Lite Receiver

2x Power Adapters

1x User Instructions
