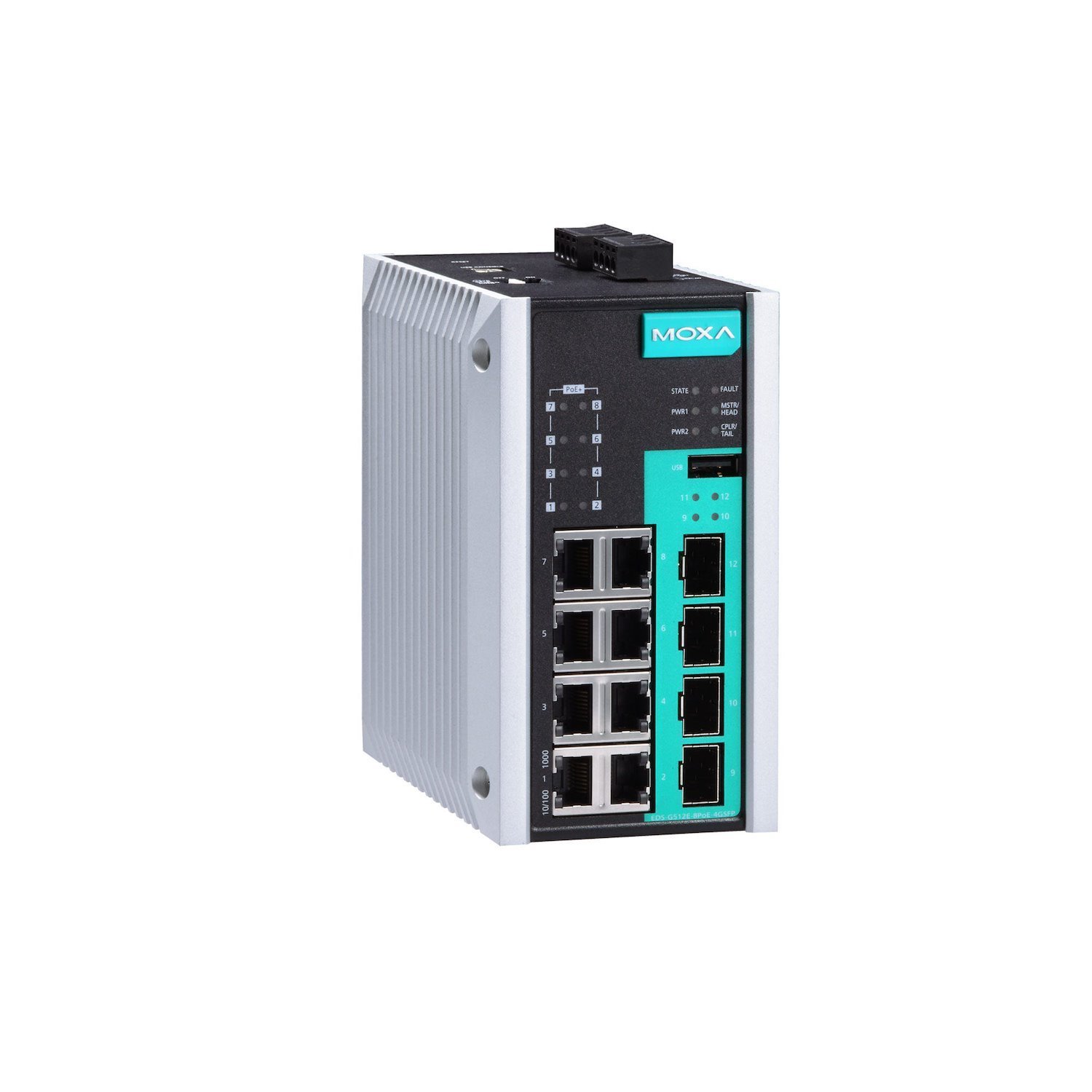

The Moxa EDS-G512E-8PoE-4GSFP-T is a high-performance full Gigabit managed Ethernet switch engineered for demanding industrial applications. It features 12 Gigabit ports, including eight IEEE 802.3at PoE+ ports and four SFP fibre optic slots, making it perfect for building a new high-bandwidth network backbone or upgrading an existing one. This switch is designed to reliably power high-bandwidth devices such as IP cameras and wireless access points, delivering up to 36W per port with a total power budget of 240W. Its robust feature set ensures maximum performance and uptime for critical systems.
Engineered for reliability in harsh conditions, the EDS-G512E-8PoE-4GSFP-T boasts a wide operating temperature range from -40 to 75°C. Network uptime is maximised through advanced redundancy technologies like Moxa's Turbo Ring and Turbo Chain, which provide network recovery in less than 50 milliseconds. Standard protocols such as RSTP, STP, and MSTP are also supported, ensuring seamless integration and failover protection within any network architecture. This makes the switch an ideal choice for mission-critical applications where network availability is paramount.
Security is a cornerstone of the EDS-G512E series, which incorporates a comprehensive suite of security features to protect your network. It supports RADIUS, TACACS+, MAB Authentication, IEEE 802.1X, MAC ACL, HTTPS, and SSH to safeguard against unauthorised access and cyber threats. For seamless integration into industrial control systems, the switch supports key industrial protocols including EtherNet/IP, PROFINET, and Modbus TCP. This allows for streamlined device management and monitoring within SCADA and DCS environments, enhancing operational visibility and control.
Management and configuration are simplified through a variety of interfaces, including a command-line interface (CLI), web console, and support for SNMP. Advanced functions like PoE scheduling, port trunking for bandwidth optimisation, and IGMP snooping for filtering multicast traffic provide granular control over your network. The switch also supports MXstudio for easy, visualised industrial network management, making deployment and maintenance more efficient. Housed in a rugged IP30-rated metal casing, this switch is designed for reliable DIN-rail or wall mounting in any industrial setting.
FEATURES
- 8x 10/100/1000BaseT(X) RJ45 ports with IEEE 802.3af/at PoE+ compliance
- 4x 100/1000BaseSFP slots for flexible fibre optic connectivity
- Up to 36W output per PoE+ port with a total power budget of 240W
- Wide operating temperature range of -40 to 75°C for use in harsh environments
- Supports Turbo Ring and Turbo Chain for network recovery in under 50ms
- Advanced security with RADIUS, TACACS+, IEEE 802.1X, and MAC ACL
- Supports industrial protocols: EtherNet/IP, PROFINET, and Modbus TCP
- Management via CLI, SNMP, Web Console, and support for MXstudio
- IP30-rated metal housing with DIN-rail and optional wall mounting
SPECIFICATIONS
- PoE Ports: 8x 10/100/1000BaseT(X) RJ45
- SFP Slots: 4x 100/1000BaseSFP
- PoE Standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
- PoE Power Output: Up to 36W per port
- Total PoE Power Budget: 240W
- Input Voltage: 44 to 57VDC ( >50VDC recommended for PoE+ output)
- MAC Table Size: 8K
- Packet Buffer Size: 4Mbits
- Jumbo Frame Size: 9.6KB
- Housing: Metal
- IP Rating: IP30
- Dimensions: 79.2mm x 1...
