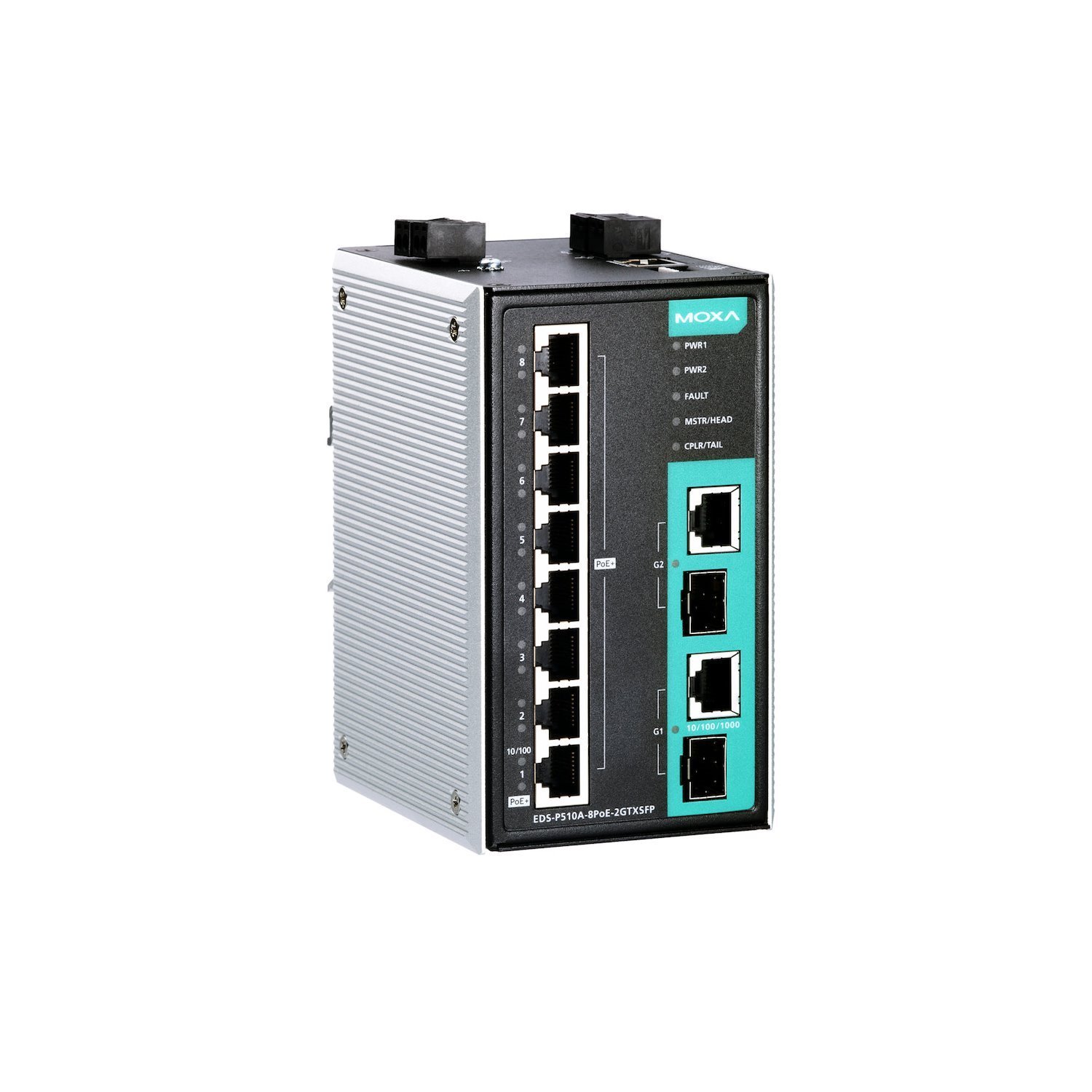

The Moxa M.EDS.P510A.8P.2GTXS.T is a dependable managed Gigabit Ethernet switch tailored for demanding industrial settings. It features 8 x 10/100BaseT(X) PoE/PoE+ ports, simplifying the powering of devices like IP cameras and wireless access points directly through network cables. Additionally, it offers 2 versatile combo Gigabit Ethernet ports, configurable as either 10/100/1000BaseT(X) or 100/1000BaseSFP slots, providing flexible copper and fibre optic connection options. Its broad operating temperature range of -10 to 60°C ensures reliable performance in harsh industrial environments.
FEATURES
- 8 x 10/100BaseT(X) PoE/PoE+ ports for powering industrial devices
- 2 x Combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for versatile connectivity
- Managed switch with advanced network management capabilities
- Redundant dual power inputs for enhanced uptime
- Supports up to 36W power output per PoE+ port
SPECIFICATIONS
- Ethernet Ports: 8 x 10/100BaseT(X) PoE/PoE+, 2 x Combo 10/100/1000BaseT(X) or 100/1000BaseSFP
- PoE Standard: IEEE 802.3af/at (PoE/PoE+)
- Maximum PoE Power Budget: 240W
- Input Voltage: 48VDC (PoE), 44 to 57VDC (Switch)
- Operating Temperature: -10 to 60°C
- Storage Temperature: -40 to 85°C
- Housing: Metal, IP30 rated
- Mounting: DIN-Rail, Wall (optional kit)
WARRANTY
1-Year Limited Warranty
