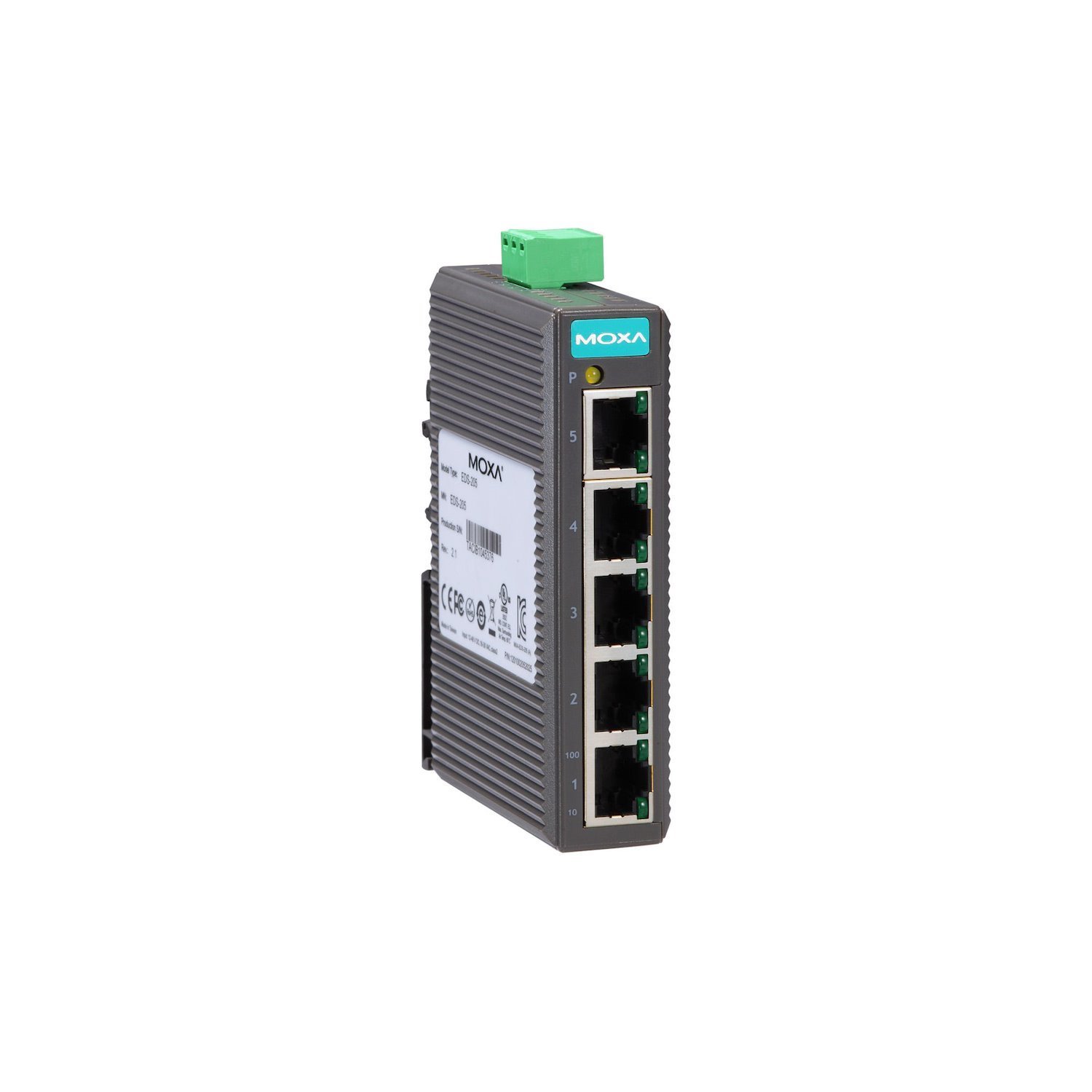

The Moxa EDS-205 is a reliable and cost-effective entry-level unmanaged Ethernet switch, specifically engineered for harsh industrial environments. It provides a simple solution for expanding your industrial network with five 10/100BaseT(X) ports, ensuring seamless connectivity for your devices. This plug-and-play device simplifies network setup, automatically detecting and adapting to network speeds and cable types, which significantly reduces installation time and effort. Its robust design is tailored for continuous operation in demanding conditions.
Housed in a compact and durable IP30-rated plastic casing, the EDS-205 is designed for easy installation in space-constrained areas, such as distribution boxes and control panels, through its DIN-rail mounting capability. The switch is built to withstand a wide operating temperature range, from -10 to 60°C, making it a dependable choice for a variety of industrial applications. With features like broadcast storm protection, it ensures network stability by preventing traffic overloads, which is crucial for maintaining uninterrupted operations in critical systems.
The EDS-205 supports IEEE 802.3/802.3u/802.3x standards with 10/100M, full/half-duplex, and MDI/MDIX auto-sensing capabilities. This ensures compatibility with a wide range of industrial devices and facilitates a straightforward setup process without the need for complex configuration. The inclusion of LED indicators for power and port status allows for quick and easy diagnostics, helping to minimise downtime. This focus on simplicity and reliability makes the EDS-205 an ideal choice for foundational industrial networking.
Engineered for efficiency and longevity, the Moxa EDS-205 operates on a flexible power input of 12 to 48 VDC, accommodating various industrial power sources. Its low power consumption of just 2.64W at 24VDC makes it an energy-efficient addition to any industrial setup. Backed by a comprehensive 5-year warranty, the EDS-205 is a smart and economical investment for enhancing the connectivity and reliability of your industrial automation and control applications.
FEATURES
- Five 10/100BaseT(X) RJ45 ports for versatile connectivity
- Supports IEEE 802.3/802.3u/802.3x standards
- Broadcast storm protection for enhanced network stability
- Compact IP30-rated plastic housing for durability
- DIN-rail mounting capability for easy installation
- Wide operating temperature range of -10 to 60°C
- Plug-and-play functionality for simple setup
SPECIFICATIONS
- Ethernet Ports: 5 x 10/100BaseT(X) (RJ45 connector)
- MAC Table Size: 1K
- Packet Buffer Size: 512 kbit
- Processing Type: Store and Forward
- Input Voltage: 12 to 48VDC
- Input Current: 0.11A @ 24VDC
- Power Consumption: 2.64W @ 24VDC
- Housing: Plastic
- IP Rating: IP30
- Dimensions: 25 x 109 x 88mm
- Weight: 135g
- Installation: DIN-rail mounting
- Operating Temperature: -10 to 60°C
- Storage Temperature: -40 to 85°C
- Ambient Relative Humidity: 5 to 95% (non-condensing)
WARRANTY
5-Year Limited Warranty
