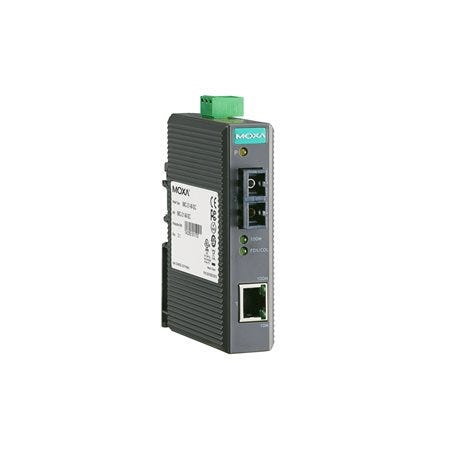

The Moxa IMC-21-M-SC is an entry-level industrial media converter engineered to provide a reliable and cost-effective solution for extending 10/100BaseT(X) Ethernet networks over multi-mode optical fibre. Specifically designed for industrial environments, this device ensures stable operation by converting copper Ethernet to a 100BaseFX fibre connection using a standard SC connector, supporting network extensions up to 5km.
Built to withstand demanding conditions, the IMC-21-M-SC features a rugged IP30-rated plastic housing. Its compact design includes integrated DIN-rail mounting, allowing for quick and secure installation in control cabinets and distribution boxes, making it an ideal choice for factory automation and other industrial applications where space is at a premium.
This converter incorporates user-friendly features for simplified network management and troubleshooting. The Link Fault Pass-Through (LFPT) function helps system administrators quickly identify and resolve link failures. Additionally, onboard DIP switches allow for easy manual configuration of speed and duplex settings, providing greater control and compatibility across various network devices.
Powering the device is highly versatile, thanks to a wide input voltage range of 12 to 48VDC, which includes overload current protection. This flexibility ensures seamless integration into different industrial power systems. The combination of its robust build, advanced features, and ease of installation makes the IMC-21-M-SC a dependable choice for bridging the gap between copper and fibre networks in challenging settings.
FEATURES
- Converts 10/100BaseT(X) Ethernet to 100BaseFX multi-mode fibre
- Multi-mode transmission with an SC fibre connector
- Link Fault Pass-Through (LFPT) for easy network troubleshooting
- DIP switches for configuring Full/Half-duplex, 10/100Mbps, and Auto/Force modes
- Flexible 12 to 48VDC power input with overload protection
- IP30-rated protective plastic housing
- Easy installation with built-in DIN-rail mounting
SPECIFICATIONS
- Ethernet Port: 1x 10/100BaseT(X) RJ45
- Fibre Port: 1x 100BaseFX multi-mode SC connector
- Magnetic Isolation Protection: 1.5kV (built-in)
- Typical Fibre Distance: Up to 5km
- Wavelength (Typical): 1300nm
- Optical Power (TX): -10 to -20dBm
- Optical Power (RX): -3 to -32dBm
- Link Budget: 12dB
- Input Voltage: 12 to 48VDC
- Input Current: 0.271A (Max.)
- Housing: Plastic
- IP Rating: IP30
- Dimensions: 25mm x 109mm x 97mm
- Weight: 125g
- Installation: DIN-rail mounting
- Safety Standards: EN 60950-1, UL 60950-1
WARRANTY
5-Year Limited Warranty
