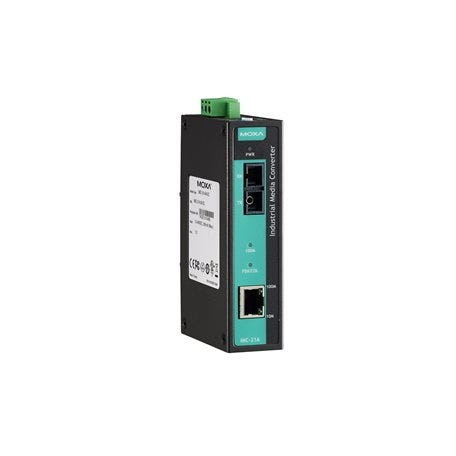

The Moxa IMC-21A-S-SC is an entry-level industrial media converter engineered to provide reliable and stable 10/100BaseT(X) to 100BaseFX network conversion in harsh industrial environments. It's the perfect solution for extending your copper-based Ethernet network over long distances using single-mode fibre optic cable, reaching up to 40km. This ensures high-integrity data transmission across large facilities, campuses, or outdoor installations where standard Ethernet cables fall short.
Designed for resilience, the IMC-21A-S-SC is housed in a rugged, IP30-rated metal casing that can be easily mounted on a DIN rail or within distribution boxes. It is built to withstand demanding industrial conditions, operating reliably in temperatures from -10 to 60°C. The robust design guarantees that your critical Ethernet equipment remains connected and functional, even when faced with challenging operational environments, making it a dependable choice for factory automation and control systems.
This media converter incorporates user-friendly features for simplified network management and troubleshooting. It includes a Link Fault Pass-Through (LFPT) function, which helps system administrators to quickly identify and resolve link failures, minimising network downtime. Additionally, DIP switches on the unit allow for straightforward configuration of full/half-duplex mode, speed, and auto/force settings, providing greater control and compatibility within your existing network infrastructure.
With a flexible power input range of 12 to 48VDC and built-in protection against overload and reverse polarity, the IMC-21A-S-SC integrates seamlessly and safely into standard industrial power systems. Its combination of long-distance communication capability, rugged construction, and essential diagnostic features makes it an excellent, cost-effective choice for extending your industrial network with confidence and reliability.
FEATURES
- Converts 10/100BaseT(X) Ethernet to 100BaseFX single-mode fibre
- Long-distance transmission up to 40km over single-mode fibre
- Features a single-mode SC fibre connector
- Link Fault Pass-Through (LFPT) for easy link failure identification
- DIP switches for configuring FDX/HDX/10/100/Auto/Force settings
- Wide operating temperature range of -10 to 60°C
- Rugged IP30-rated metal housing
- Easy DIN-rail mounting for industrial enclosures
- Supports a wide 12 to 48VDC power input
- Overload current and reverse polarity protection
SPECIFICATIONS
- RJ45 Port: 1x 10/100BaseT(X)
- Fibre Port: 1x 100BaseFX (single-mode SC connector)
- Magnetic Isolation Protection: 1.5kV (built-in)
- Fibre Cable Type: G.652
- Typical Transmission Distance: 40km
- Wavelength: 1310nm
- Optical Power (TX/RX): 0 to -5dBm / -3 to -34dBm
- Link Budget: 29dB
- Input Voltage: 12 to 48VDC
- Input Current: 265mA (max.)
- Power Connector: Terminal block
- Housing: Metal
- IP Rating: IP30
- Dimensions: 30 x 125 x 79mm
- Weight: 170g
- Installation: DIN-rail mounting
- Operating Temperature: -10 to 60°C
- Storage Temperature: -40 to 75°C
- Ambient...
