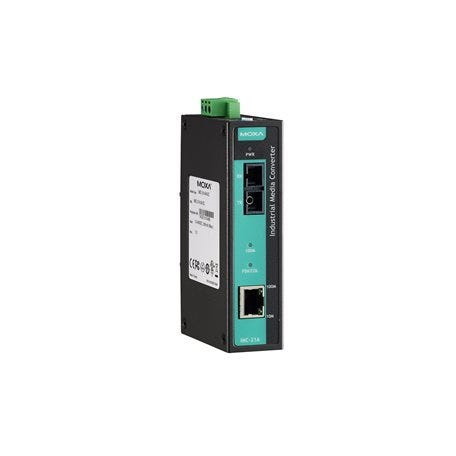

The Moxa IMC-21A-S-SC is an entry-level industrial media converter designed to provide reliable and stable 10/100BaseT(X) to 100BaseFX fibre optic conversion in harsh industrial environments. This robust unit is engineered to extend your Ethernet network over long distances, capable of reaching up to 40km using single-mode fibre with a dependable SC connector. Its rugged hardware design ensures your equipment can withstand demanding industrial conditions, making it an ideal choice for factory automation, transportation, and other challenging settings.
Built for resilience, the IMC-21A-S-SC features a durable metal housing with an IP30 rating, providing protection against ingress from tools and wires. The compact, DIN-rail mountable design allows for quick and easy installation in distribution boxes or control cabinets, saving valuable space. This model operates reliably in a standard temperature range of -10 to 60°C, ensuring consistent performance.
For enhanced network management and troubleshooting, the IMC-21A-S-SC is equipped with Link Fault Pass-Through (LFPT). This feature allows the converter to forward link status changes, helping system administrators to quickly identify and resolve network connection issues. Additionally, DIP switches on the unit provide the flexibility to manually configure settings such as full/half-duplex, speed, and auto/force mode to match your specific network requirements.
The converter supports a wide power input range of 12 to 48VDC and includes essential protections like reverse polarity and overload current protection to safeguard the device. With its combination of rugged design, long-distance capability, and user-friendly features, the Moxa IMC-21A-S-SC is a cost-effective and dependable solution for extending your industrial Ethernet network.
FEATURES
- Converts 10/100BaseT(X) Ethernet to 100BaseFX Single-Mode Fibre
- Single-mode with a secure SC fibre connector
- Long-distance transmission up to 40km
- Link Fault Pass-Through (LFPT) for easy network troubleshooting
- DIP switches for configurable speed and duplex settings
- Standard operating temperature range from -10 to 60°C
- Rugged IP30-rated metal housing
- Easy DIN-rail installation
SPECIFICATIONS
- Ethernet Port: 1 x 10/100BaseT(X) RJ45
- Fibre Port: 1 x 100BaseFX Single-Mode SC Connector
- Fibre Cable Type: G.652
- Wavelength: Typical 1310nm (TX)
- Optical Power (TX): 0 to -5dBm
- Optical Power (RX): -3 to -34dBm
- Link Budget: 29dB
- Input Voltage: 12 to 48VDC
- Input Current: 265mA (Max.)
- Power Connector: Terminal block
- Housing: Metal
- Installation: DIN-rail mounting
- Dimensions: 30mm x 125mm x 79mm
- Weight: 170g
- Operating Temperature: -10 to 60°C
- MTBF: 353,000 hrs
WARRANTY
5-Year Limited Warranty
