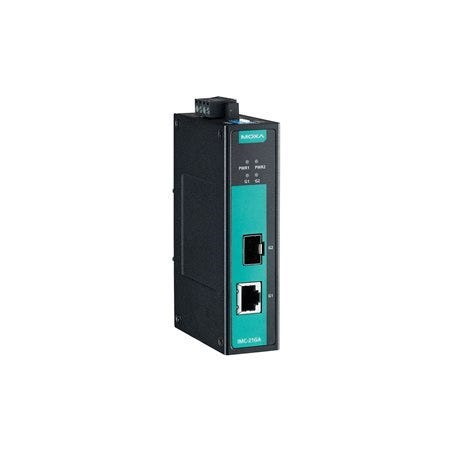

The Moxa IMC-21GA is a robust and reliable industrial Gigabit media converter designed to provide stable 10/100/1000BaseT(X) to fibre optic conversion. Engineered for industrial environments, this entry-level converter utilises a flexible SFP slot, allowing you to select the appropriate SFP module for your specific network distance and application requirements. Its durable metal housing and DIN-rail mountable design ensure easy integration into control cabinets and demanding settings.
Achieve superior network performance and efficiency with the IMC-21GA. It supports 10K jumbo frames, which enhances transmission performance by allowing larger data packets to be sent, increasing your network's throughput. Furthermore, it incorporates IEEE 802.3az (Energy-Efficient Ethernet), a feature that intelligently reduces power consumption during periods of low data activity. This not only lowers operational costs but also contributes to a greener footprint without compromising performance.
Reliability is paramount in industrial applications, and the IMC-21GA is built to ensure continuous operation. It features dual redundant 12 to 48 VDC power inputs, guaranteeing that the converter remains active even if one power source fails. Troubleshooting is simplified with the inclusion of Link Fault Pass-Through (LFPT), which makes it easy to identify and resolve link issues on both the copper and fibre sides of the connection, minimising potential downtime and streamlining network maintenance.
Every IMC-21GA unit is subjected to a 100% burn-in test to guarantee its durability and readiness for deployment. This converter is built to operate in a standard temperature range of -10 to 60°C, making it a dependable choice for a wide array of industrial automation, manufacturing, and surveillance applications. Its combination of performance, efficiency, and rugged design provides a dependable solution for extending your Gigabit Ethernet network over fibre.
FEATURES
- Converts 10/100/1000BaseT(X) Ethernet to 100/1000Base fibre via an SFP slot
- Link Fault Pass-Through (LFPT) for simplified fault detection
- Supports 10K jumbo frames to increase network throughput
- Features Energy-Efficient Ethernet (IEEE 802.3az) for power savings
- Dual redundant 12 to 48 VDC power inputs for high availability
- Robust metal housing with DIN-rail mounting
SPECIFICATIONS
- Ethernet Port: 1 x 10/100/1000BaseT(X) RJ45
- Fibre Port: 1 x 100/1000Base SFP Slot
- Input Voltage: 12 to 48 VDC
- Input Current: 284.7mA @ 12-48VDC
- Overload Current Protection: Supported
- Housing: Metal
- Dimensions: 30mm x 125mm x 79mm
- Weight: 170g
- Installation: DIN-rail mounting
- Operating Temperature: -10 to 60°C
- Storage Temperature: -40 to 75°C
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- MTBF: 2,762,058 hours
WARRANTY
5-Year Limited Warranty
