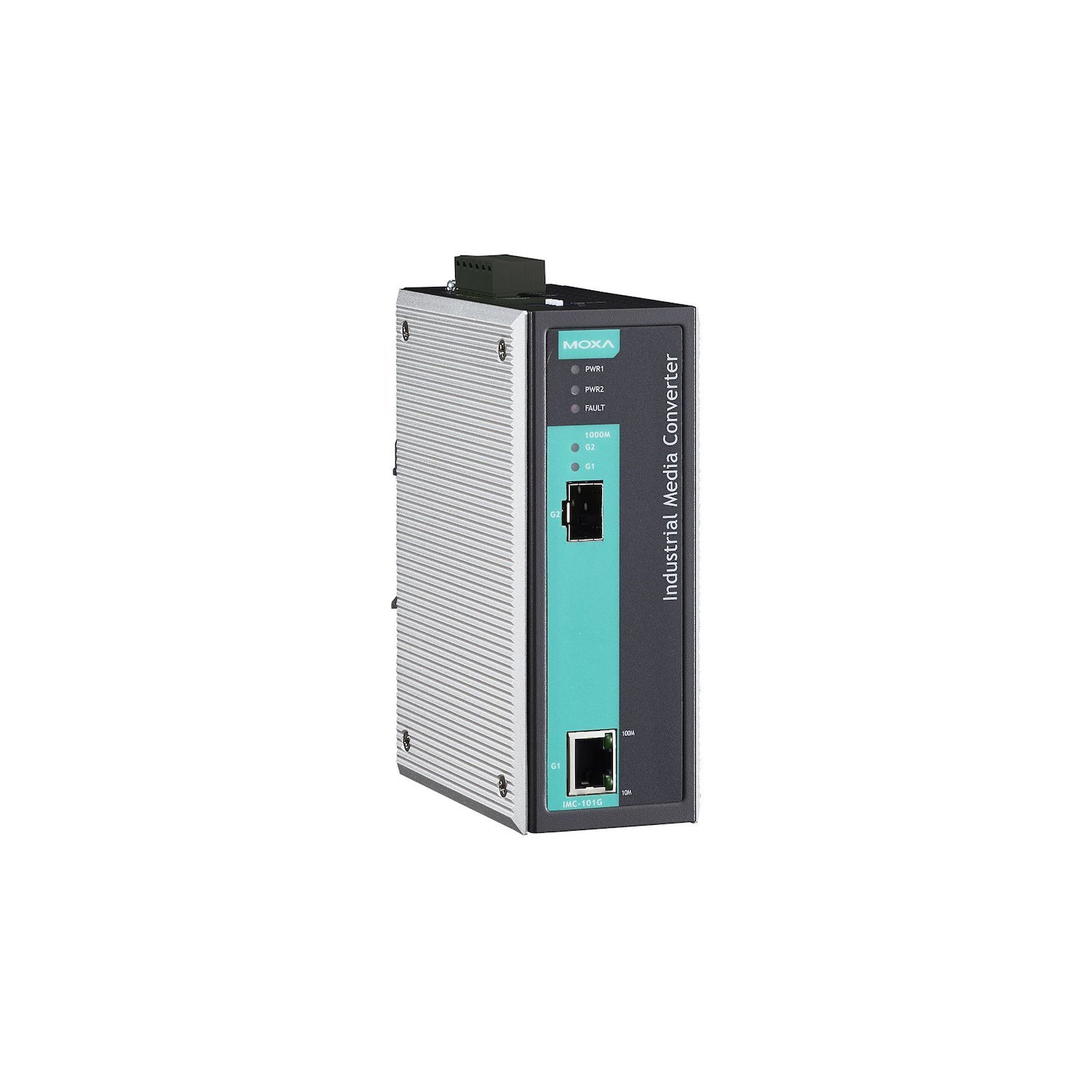

The Moxa IMC-101G-T is an industrial-grade Gigabit media converter designed to deliver reliable network performance in the most demanding environments. Engineered specifically for harsh conditions, this wide-temperature model seamlessly converts 10/100/1000BaseT(X) Ethernet to 1000BaseSFP fibre, ensuring stable, high-speed data transmission over long distances. Its robust metal housing and DIN-rail mounting capability make it ideal for integration into industrial automation and control cabinets where space and durability are critical.
Built for continuous operation, the IMC-101G-T can withstand extreme temperatures ranging from -40 to 75°C, making it a perfect fit for Australian industries such as mining, transportation, and factory automation. It features redundant 12 to 48VDC power inputs to enhance system uptime and prevent data loss from a single power supply failure. This ensures your critical network connections remain active, even in the event of power fluctuations or outages.
To maximise network reliability, the IMC-101G-T is equipped with essential diagnostic features like Link Fault Pass-Through (LFPT). This function immediately alerts connected devices to a link failure, enabling faster troubleshooting and reducing network downtime. Additionally, a built-in relay output provides a warning alarm for power failures and port breaks, allowing for proactive maintenance and helping to prevent catastrophic system-wide issues before they occur.
FEATURES
- Converts 10/100/1000BaseT(X) to 1000BaseSFP
- Wide operating temperature range of -40 to 75°C
- Redundant 12 to 48VDC power inputs
- Link Fault Pass-Through (LFPT) for easy link status tracking
- Relay output alarm for power failure and port break notifications
- Robust metal housing with DIN-rail mounting
- Supports hazardous location certifications for enhanced safety
SPECIFICATIONS
- RJ45 Ports: 1x 10/100/1000BaseT(X)
- Fibre Ports: 1x 1000BaseSFP Slot
- Input Voltage: 12 to 48VDC
- Input Current: 200mA (max) @ 12VDC
- Power Connector: Terminal block
- Housing: Metal
- Dimensions: 53.6 x 135 x 105mm
- Weight: 630g
- Operating Temperature: -40 to 75°C
- Storage Temperature: -40 to 85°C
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- MTBF: 500,540 hours
WARRANTY
5-Year Limited Warranty
