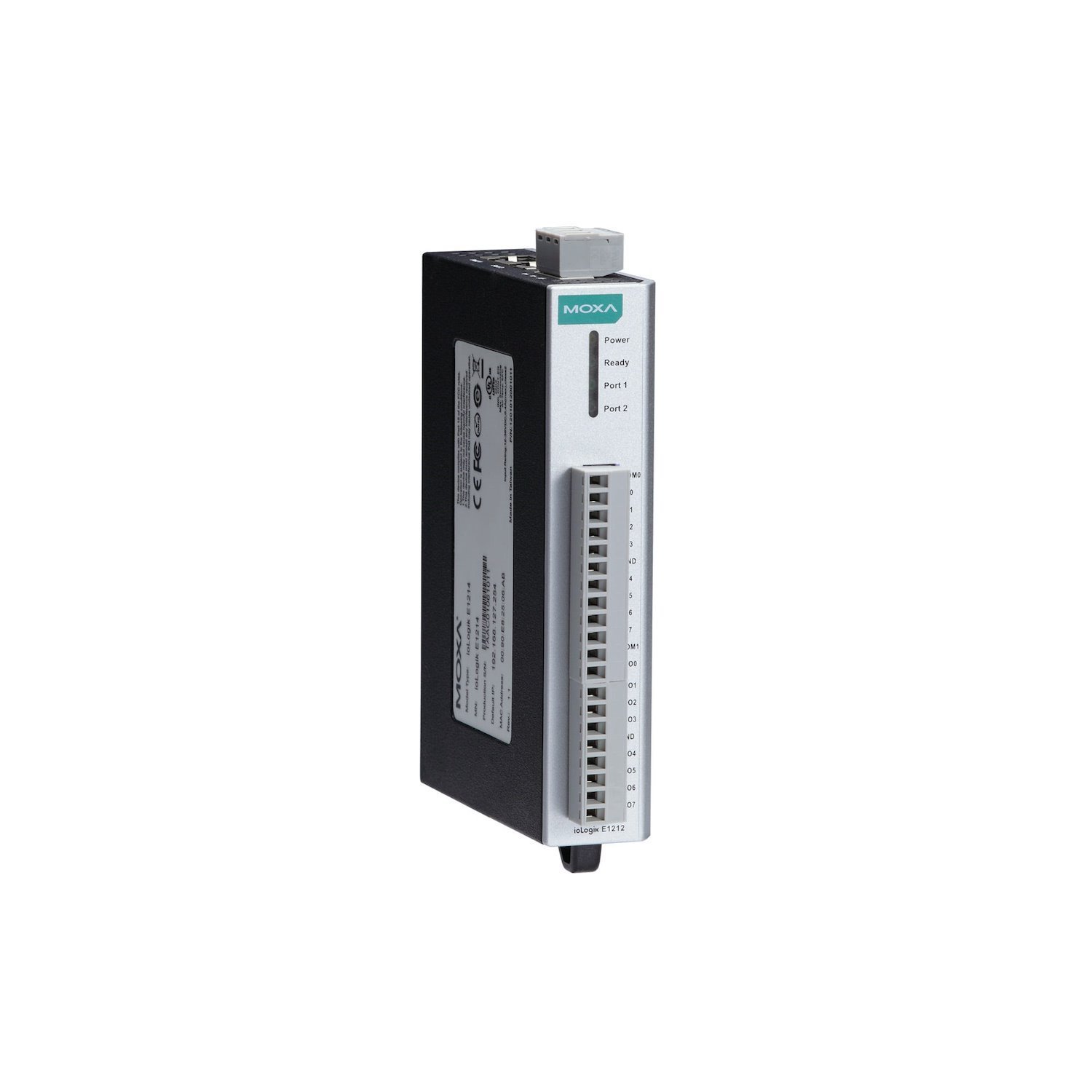

The Moxa ioLogik E1212-T is a rugged and reliable Ethernet remote I/O module engineered for demanding industrial applications and harsh environments. Designed to operate flawlessly in extreme temperatures ranging from -40 to 75°C, this module ensures continuous data acquisition and control where standard equipment would fail. It provides a versatile combination of 8 digital inputs and 8 configurable digital input/output (DIO) channels, making it a highly flexible solution for a wide range of monitoring and automation tasks.
Streamline your network infrastructure and reduce costs with the ioLogik E1212-T's built-in 2-port Ethernet switch. This feature enables easy daisy-chaining of multiple modules, eliminating the need for separate Ethernet switches and minimising complex wiring. This topology is ideal for creating expansive multidrop I/O networks across factory floors or remote sites, saving both time and installation expenses.
Bridging the gap between operational technology (OT) and information technology (IT) has never been easier. The ioLogik E1212-T supports a variety of protocols, including Modbus TCP and EtherNet/IP for OT engineers, as well as SNMP and a RESTful API for IT teams. This multi-protocol capability allows different departments to retrieve data from the same device simultaneously, fostering seamless integration and effortless connectivity in modern IIoT applications.
Configuration and deployment are simplified through a user-friendly web browser interface and the powerful ioSearch utility, which makes mass configuration straightforward. The ability to define Modbus TCP addresses and implement peer-to-peer communication further enhances its ease of use, allowing input values from one module to be directly mapped to another's output channels for simplified, cost-effective control logic.
FEATURES
- Wide operating temperature range of -40 to 75°C
- 8 digital inputs and 8 configurable DIO channels
- Built-in 2-port Ethernet switch for creating daisy-chain topologies
- Supports Modbus TCP, EtherNet/IP, SNMP, and RESTful API
- Saves time and wiring costs with peer-to-peer communications
- User-definable Modbus TCP slave addressing
- Configuration via web browser and ioSearch utility
- Certified for Class I Division 2 and ATEX Zone 2 hazardous locations
SPECIFICATIONS
- Digital Input Channels: 8
- Configurable DIO Channels: 8 (Sink type)
- Wet Contact (On): 10 to 30VDC
- Wet Contact (Off): 0 to 3VDC
- Digital Input Counter Frequency: 250Hz
- Digital Output Current Rating: 200mA per channel
- Digital Output Pulse Frequency: 500Hz (max.)
- Over-Current Protection: 2.6A per channel @ 25°C
- Ethernet Ports: 2 x 10/100BaseT(X) RJ45
- Magnetic Isolation Protection: 1.5kV (built-in)
- Input Voltage: 12 to 36VDC
- Power Consumption: 155mA @ 24VDC
- Housing: Plastic
- Dimensions: 27.8 x 124 x 84mm
- Installation: DIN-rail or wall mounting
- Ambient Relative Humidity: 5 to 95% (non-condensing)
WARRANTY
5-Year Limited Warranty
