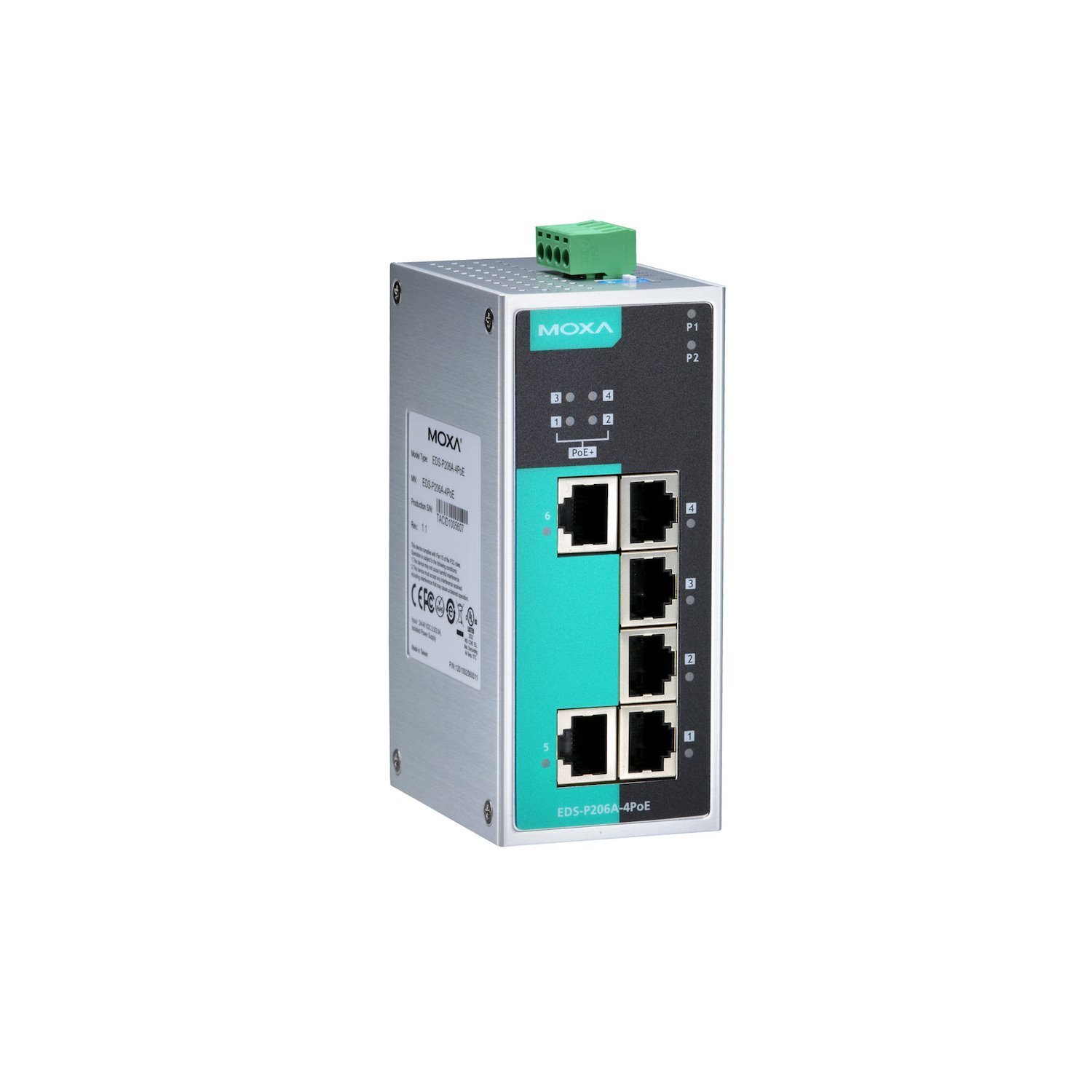

The Moxa EDS-P206A-4PoE is a smart, 6-port unmanaged Ethernet switch designed for industrial applications requiring simplified power and data connectivity. This switch is classified as Power Source Equipment (PSE) and features four IEEE 802.3af/at compliant Power-over-Ethernet Plus (PoE+) ports. It centralises your power supply by delivering up to 30 watts of power per port, making it ideal for powering devices like IP cameras, wireless access points, and VoIP phones without needing additional wiring.
Engineered for maximum reliability, the EDS-P206A-4PoE incorporates redundant dual 12/24/48 VDC power inputs, ensuring continuous operation even if one power source fails. The switch also features intelligent power consumption detection, which automatically classifies connected devices to provide power efficiently. This combination of robust power delivery and built-in redundancy makes it an economical and dependable solution for your industrial Ethernet network.
Housed in a rugged IP30-rated metal casing, this compact switch is built to withstand demanding industrial conditions. It supports DIN-rail mounting for easy installation inside control cabinets. With plug-and-play functionality, including support for 10/100M speed, full/half-duplex mode, and auto MDI/MDI-X, the EDS-P206A-4PoE simplifies network expansion without requiring complex configuration, providing a durable and user-friendly solution.
FEATURES
- 4 IEEE 802.3af/at compliant PoE+ ports
- 2 standard 10/100BaseT(X) Ethernet ports
- Up to 30W output per PoE port
- 120W total power budget for all connected devices
- Redundant dual 12/24/48 VDC power inputs for high reliability
- Intelligent power consumption detection and classification
- IP30 rated metal housing
- DIN-rail mountable for easy cabinet installation
SPECIFICATIONS
- PoE Ports: 4x 10/100BaseT(X) RJ45
- Ethernet Ports: 2x 10/100BaseT(X) RJ45
- PoE Standards: IEEE 8002.3af/at for PoE/PoE+
- Input Voltage: 12 to 57VDC (Redundant dual inputs)
- Power Budget: Max. 120W for total PD consumption
- Power Per Port: Max. 30W
- Power Consumption (Switch): Max. 13.2W (without PDs)
- MAC Table Size: 2K
- Packet Buffer Size: 768 kbits
- Housing: Metal
- IP Rating: IP30
- Dimensions: 50.3 x 114 x 70mm
- Weight: 375g
- Installation: DIN-rail mounting
- Operating Temperature: -10 to 60°C
- MTBF: 1,398,743 hrs
WARRANTY
5-Year Limited Warranty
