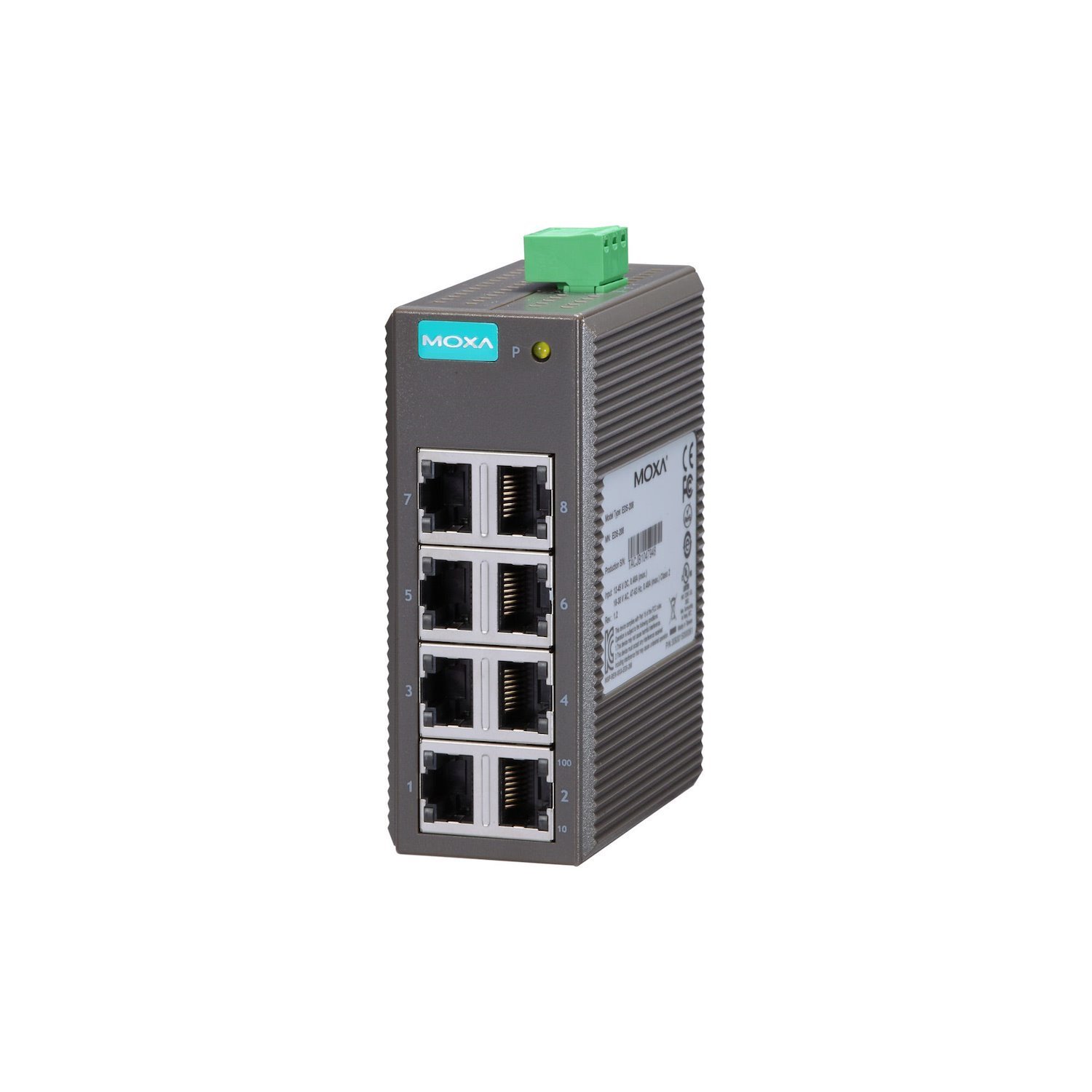

The Moxa EDS-208 is a robust, entry-level unmanaged Ethernet switch designed to provide reliable network connectivity in harsh industrial environments. With eight 10/100BaseT(X) RJ45 ports, it offers a simple and effective solution for expanding your industrial network. The switch supports IEEE 802.3/802.3u/802.3x standards and features auto MDI/MDI-X, making it a true plug-and-play device that requires no configuration to get started.
Engineered for durability, the EDS-208 is housed in a compact, IP30-rated plastic enclosure that can be easily installed on a DIN rail, saving valuable cabinet space. It is built to withstand a wide operating temperature range from -10 to 60°C, ensuring consistent performance in challenging factory floors, outdoor cabinets, and other demanding locations. This resilience makes it a dependable choice for industrial automation and control systems.
To ensure network stability, the EDS-208 incorporates broadcast storm protection, which prevents excessive network traffic from overwhelming connected devices and causing slowdowns. It also features reverse polarity and overload current protection for its 12/24/48VDC power input, safeguarding the hardware from common electrical issues. With an exceptionally high Mean Time Between Failures (MTBF) and a 5-year warranty, the Moxa EDS-208 delivers a cost-effective and long-lasting networking solution you can trust.
FEATURES
- 8 x 10/100BaseT(X) RJ45 ports with auto MDI/MDI-X
- Supports IEEE 802.3/802.3u/802.3x standards
- Broadcast storm protection for enhanced network stability
- Plug-and-play unmanaged operation
- Wide operating temperature range of -10 to 60°C
- Compact IP30-rated plastic housing
- DIN-rail mounting capability
- Reverse polarity and overload current protection
SPECIFICATIONS
- Processing Type: Store and Forward
- MAC Table Size: 2K
- Packet Buffer Size: 768kbits
- Input Voltage: 12/24/48VDC
- Operating Voltage: 9.6 to 60VDC
- Input Current: 0.07A @ 24VDC
- Connection: 1 removable 3-contact terminal block
- Housing: Plastic
- IP Rating: IP30
- Dimensions: 40mm x 100mm x 86.5mm
- Weight: 170g
- Installation: DIN-rail mounting
- Safety Standards: UL 508, UL 60950-1, EN 62368-1
- MTBF: 3,902,526 hrs
WARRANTY
5-Year Limited Warranty
