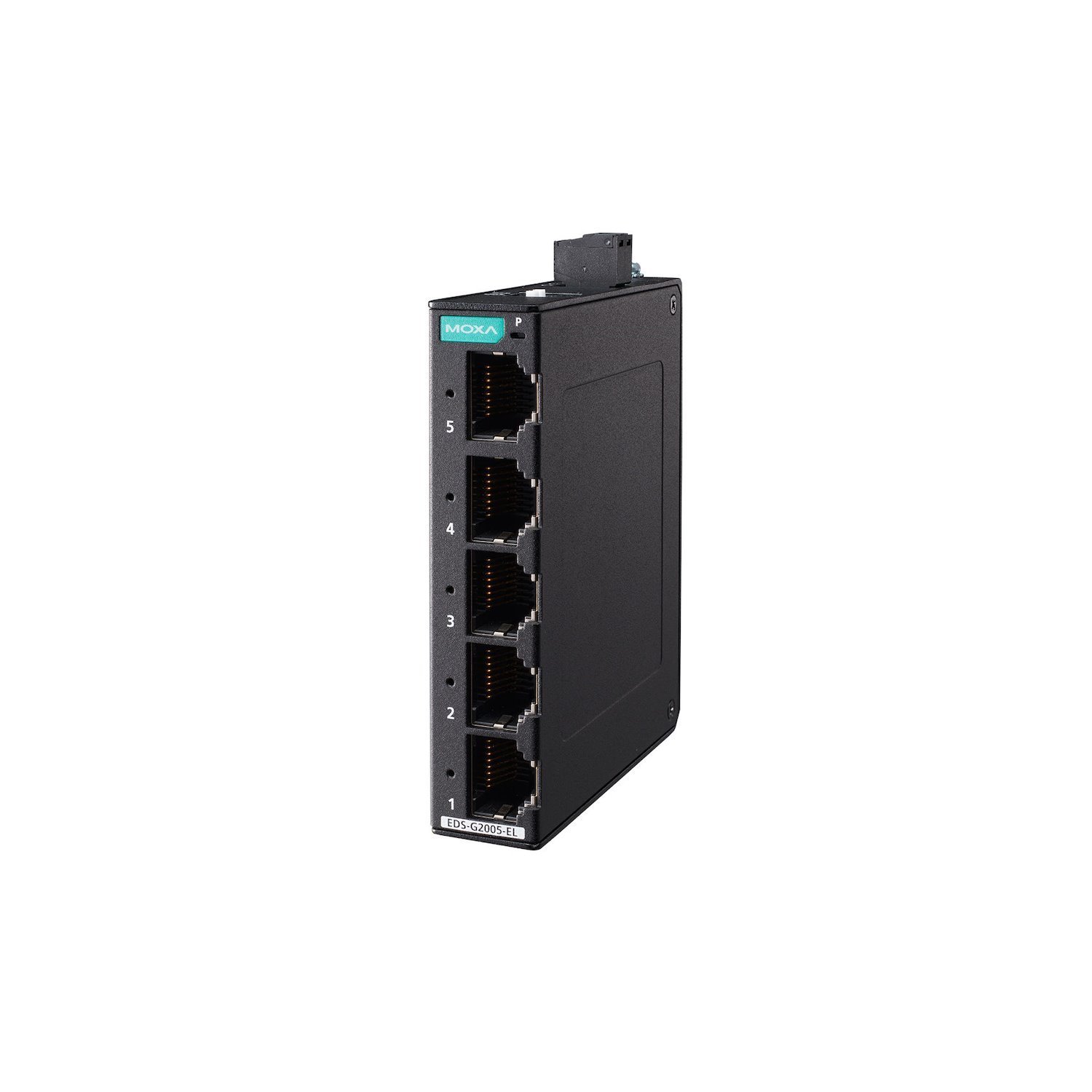

The Moxa EDS-G2005-EL is a robust, entry-level unmanaged Ethernet switch designed for industrial applications that demand simplicity and reliability. Featuring five full Gigabit Ethernet ports, this switch is ideal for high-bandwidth data transmission in factory automation, surveillance systems, and other demanding environments. Its plug-and-play design ensures effortless installation and network expansion without the need for complex configuration. The EDS-G2005-EL is built to withstand the rigours of industrial settings, providing a dependable networking solution that keeps your critical operations running smoothly.
Engineered for versatility, the EDS-G2005-EL series incorporates user-friendly DIP switches to manage Quality of Service (QoS) and broadcast storm protection (BSP). This allows for the prioritisation of critical data in heavy traffic and prevents network disruptions, ensuring stable and efficient communication. The compact and durable IP40-rated metal housing, combined with DIN-rail and wall mounting options, offers flexible installation in space-constrained areas like control cabinets and distribution boxes. This switch is the perfect choice for upgrading or expanding industrial networks with a cost-effective and reliable solution.
The Moxa EDS-G2005-EL is designed for resilience in harsh industrial environments. It supports a wide power input range of 12/24/48 VDC and has undergone a 100% burn-in test to guarantee its reliability. With its rugged construction and high-level EMI/EMC capabilities, this unmanaged switch provides a dependable and straightforward solution for your industrial Ethernet connectivity needs, ensuring long-term performance and peace of mind.
FEATURES
- 5 x 10/100/1000BaseT(X) RJ45 ports for high-speed connectivity
- Full Gigabit Ethernet ports for bandwidth-intensive applications
- Compact size for easy installation in confined spaces
- Quality of Service (QoS) supported for prioritising critical data
- Broadcast Storm Protection (BSP) to prevent network disruptions
- IP40-rated metal housing for durability in industrial environments
- DIN-rail and wall-mountable for flexible installation
- Plug-and-play functionality for simple setup
SPECIFICATIONS
- Ethernet Ports: 5 x 10/100/1000BaseT(X)
- MAC Table Size: 8K
- Packet Buffer Size: 1.5Mbits
- Processing Type: Store and Forward
- Input Voltage: 12/24/48VDC
- Operating Voltage: 9.6 to 60VDC
- Input Current: 0.21A @ 24VDC
- Housing: Metal
- IP Rating: IP40
- Dimensions: 18 x 81 x 65mm
- Weight: 120g
- Installation: DIN-rail mounting, Wall mounting (with optional kit)
- Operating Temperature: -10 to 60°C
- Storage Temperature: -40 to 85°C
- Ambient Relative Humidity: 5 to 95% (non-condensing)
WARRANTY
5-Year Limited Warranty
